Three Way Ball Valve/3 Way Ball Valve
(3 Way Ball Valve Manufacturers / Three Way Ball Valve Manufacturer)
Three Way Ball Valves / 3 Way Ball Valves
Multiport Ball Valves, Diverter 3 Way Ball Valve
High Performance 3 Way Ball Valve Manufacturers
Full Port (Full Bore) 3 Way Ball Valve / Reduce Bore 3 Way Ball Valve
Flanged / Screwed / Socket / Butt Weld End Connection 3 Way Ball Valve
Manual Lever / Gear / Pneumatic / Electrical Operated 3 Way Ball Valve

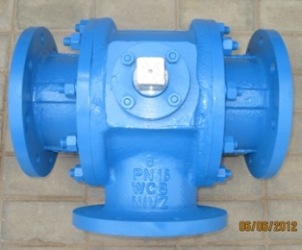

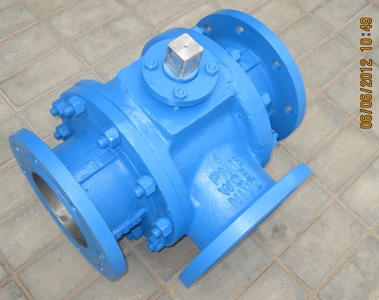

Series: S108LT/S208LT – 3 Way Ball Valve (Screwed End)
Series: F308LT/F408LT – 3 Way Ball Valve (Flanged End)
“TWIN” offers a tremendous value in Three Way Ball Valve. 3 Way Ball Valve is a Specialty of “TWIN”, a leading manufacturer, supplier & exporter of Ball Valve and Actuation. We have a wide Range/Model of Three Way Ball Valve in Carbon Steel, Stainless Steel, Cast Iron and others metal on special request. Our Three Way Ball Valve selection covers Full Port (Full Bore) & Regular (Reduce) Port, Flanged End, Screwed End, Socket Weld, Butt Weld (Welded Neck) End & with Manual Hand Lever, Gear Box, Pneumatic, Electrical Actuator Operation.

Three-way ball valves have an “L” or “T” Shaped Port Hole through the middle for suitable service condition. The different combinations of flow are shown in the figure. It is easy to see that a T valve can connect any pair of ports, or all three. Mixing and Diverting Type Three Way Ball Valves are also available. The L valve can connect the center port to either side port, or disconnect all three, but it cannot connect the side ports together. “TWIN” 3 Way Ball Valve features Four/Two seats for equal seat loading. Multiple Gland Packing “V” Seal & Spring Tension Washer gives zero leakage from gland portion.

Our 3 Way Ball Valves are best suitable for all industrial applications. TWIN 3 Way Ball Valve application covers for Lube Oil Cooler 3 Way Ball Valve, Lube Oil Filter 3 Way Ball Valve, Duplex Heat Exchager 3 Way Ball Valve, Duplex Type Basket Strainer 3 Way Ball Valve, Duplex Filter 3 Way Ball Valve, Mixing and Diverting Type 3 Way Ball Valve, Multiport 3 Way  Ball Valve, Pump By-Pass Line 3 Way Ball Valve, Diverter 3 Way Ball Valve, Extened Stem 3 Way Ball Valve & Jacketed 3 Way Ball Valve can also available on special request. For screwed end type 3 Way Ball Valve, we provide BSP/BSPT/BSPP/NPT Female Thread as per customer choice. Socket weld end 3 Way Ball Valve & Nipple End 3 Way Ball Valve also can manufactuing on order basis. TWIN 3 Way Ball Valve available in Cast Carbon Steel (C.S - ASTM A216 GR. WCB), S.S. 304/316/304L/316L (ASTM A 351 GR. CF8/CF8M/CF3/CF3M), Low Temperature Carbon Steel - LTCS (ASTM A 352 GR. LCB/LCC), Alloy 20, Monel and Others of request. 3 Way Ball Valve application is for Mixing, Diverting & Blending.

TWIN Three Way Ball Valves are satisfactory perfrom in various Power Plant Lube Oil Cooler (Heat Exchanger) and Lube Oil Filter Application. This application covers both valves operate by single Hand lever or Gear Operated. We have recently supply  02 Nos. of 3 Way Ball Valve operated by single gear mechanism and between both valve have distance 4.0 meter. Our manufacturing range of 3 Way Ball Valve starts from size 1/2" to 12", Pressure Rating - 150# / 300#. All Types 3 Way T Port Ball Valve and 3 Way L Port Ball valve can supply with Electrical Single Phase / Three Phase Actuator or Pneumatic Qurater turn rotary actuator operated. We offer single acting spring return or double acting actuator as per client requirements. TWIN all 3 Way  Ball Valves are supplieed with PTFE "V" Ring gland packing for long life zero leakages from gland area. For High Pressure application and Oil-Gas application we also do provide Fire Safe type design for better performance of 3 way ball valve.

Wide Range of 3 Way Ball Valves:

  • 3 Way Ball Valve Manufacturers
  • 3 Way Ball Valve Manufacturer
  • 3 Way Ball Valve Exporters
  • 3 Way Ball Valve Supplier
  • 3 Way Ball Valve Suppliers
  • 3 Way Ball Valve Stockiest
  • 3 Way Ball Valve
  • 3 Way Ball Valves
  • 3 Way Ball Valve India
  • 3 Way Ball Valve Gujarat
  • 3 Way Ball Valve Ahmedabad
  • 3 Way L Port Ball Valve
  • 3 Way T Port Ball Valve
  • 3 Way Pneumatic Ball Valve
  • Pneumatic Operated 3 Way Ball Valve
  • Pneumatic Actuator Operated 3 Way Ball Valve
  • Pneumatic 3 Way Ball Valve
  • Pneumatic 3 Way Valve
  • Remote Operated 3 Way Ball Valve
  • 3 Way Ball Valve Flanged End
  • 3 Way Ball Valve Screwed End
  • L Port Ball Valve
  • T Port Ball Valve
  • 3 Way Diverter Valve
  • Diverter Valve
  • 3 Way Fire Safe Ball Valve
  • 3 Way Extended Stem Ball Valve
  • Extended Stem 3 Way Ball Valve
  • 3 Way Extended Bonnet Ball Valve
  • Extended Bonnet 3 Way Ball Valve
  • 3 Way Ball Valve India
  • Two Seated 3 Way Ball Valve
  • Four Seated 3 Way Ball Valve
  • 3 Way Ball Valve for Duplex Strainer
  • Duplex Filter 3 Way Ball Valve
  • Multiport Ball Valve Manufacturers
  • 3 Way Globe Valve Manufacturer
  • 3 Way Globe Valve Manufacturers
  • 3 Way Globe Valve Exporters
  • 3 Way Globe Valve Suppliers
  • 3 Way Globe Valve Stockiest
  • 3 Way Globe Valve India
  • 3 Way Globe Valve
  • Globe Valve 3 Way
  • Mixing and Diverting Type Globe Valve
  • Three Way Ball Valve Manufacturer
  • Three Way Ball Valve Manufacturers
  • Three Way Ball Valve Exporters
  • Three Way Ball Valve Supplier
  • Three Way Ball Valve Suppliers
  • Three Way Ball Valve Stockiest
  • Three Way Ball Valve
  • Three Way Ball Valves
  • Three Way Ball Valve India
  • Three Way Ball Valve Gujarat
  • Three Way Ball Valve Ahmedabad
  • Three Way L Port Ball Valve
  • Three Way T Port Ball Valve
  • Three Way Pneumatic Ball Valve
  • Pneumatic Operated Three Way Ball Valve
  • Pneumatic Actuator Operated Three Way Ball Valve
  • Pneumatic Three Way Ball Valve
  • Pneumatic Three Way Valve
  • Remote Operated Three Way Ball Valve
  • Three Way Ball Valve Flanged End
  • Three Way Ball Valve Screwed End
  • Three Way Diverter Valve
  • L Port Ball Valve Manufacturer
  • T Port Ball Valve Manufacturer
  • Three Way Diverter Valve
  • Three Way Fire Safe Ball Valve
  • Three Way Extended Stem Ball Valve
  • Extended Stem Three Way Ball Valve
  • Three Way Extended Bonnet Ball Valve
  • Extended Bonnet Three Way Ball Valve
  • Three Way Ball Valve India
  • Two Seated Three Way Ball Valve
  • Four Seated Three Way Ball Valve
  • Three Way Ball Valve for Duplex Strainer
  • Duplex Filter Three Way Ball Valve
  • Multiway Ball Valve Manufacturer
  • Three Way Globe Valve Manufacturer
  • Three Way Globe Valve Manufacturers
  • Three Way Globe Valve Exporters
  • Three Way Globe Valve Suppliers
  • Three Way Globe Valve Stockiest
  • Three Way Globe Valve India
  • Three Way Globe Valve
  • Globe Valve Three Way
  • Mixing and Diverting Globe Valve
Series: S108LT/S208LT – 3 Way Ball Valve Series: S108LT/S208LT – 3 Way Ball Valve
Port Option – “L” / “T”
Size – ½” (DN15) to 2” (DN300)
Bore – Full Bore
End Connection – Screwed End (BSP/NPT)
Rating – 150# / 300#
Operation – Lever/Pneumatic/Electrical
MOC – WCB/CF8/CF8M/CF3/CF3M/CN7M
Trims – SS 304/316/304L/316L
Series: F308LT/F408LT – 3 Way Ball Valve Series: F308LT/F408LT – 3 Way Ball Valve
Port Option – “L” / “T”
Size – ½” (DN15)to 8” (DN200)
Bore – Full Bore
End Connection – Flanged End
Rating – 150# / 300#
Flange Drilling – ANSI B 16.5/BS 10/PN/JIS
Operation – Lever/Gear/Pneumatic/Electrical
MOC – WCB/CF8/CF8M/CF3/CF3M/CN7M
Trims – SS 304/316/304L/316L
Series: F508L/F608L 3 Way Ball Valve Series: F508L/F608L 3 Way Ball Valve
Port Option – “L”
Size – ½” (DN15) to 12” (DN300)
Bore – Full Bore
End Connection – Flanged End
Rating – 150# / 300#
Flange Drilling – ANSI B 16.5/BS 10/PN/JIS
Operation – Lever/Gear/Pneumatic/Electrical
MOC – WCB/CF8/CF8M/CF3/CF3M/CN7M
Trims – SS 304/316/304L/316L
Three Way Ball Valve Different Position

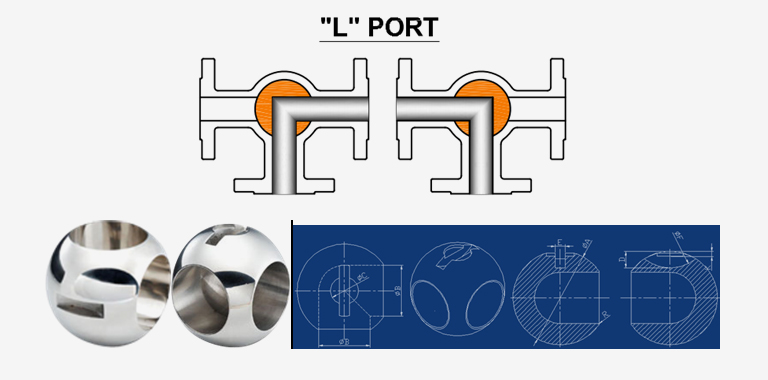

Three Way Ball Valve L Port Position

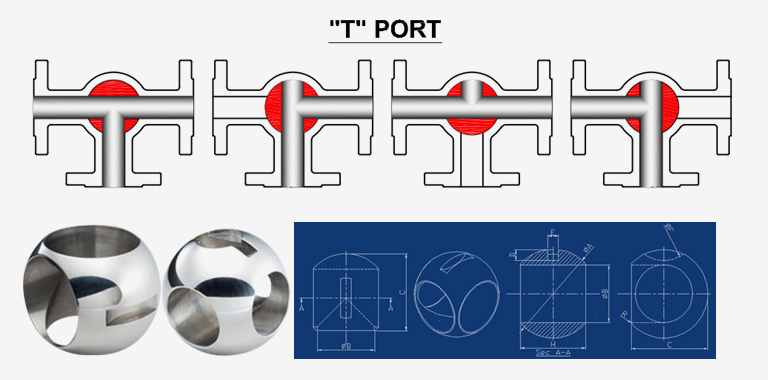

Three Way Ball Valve T Port Position



3 Way Pneumatic Operated Valve (Series F308P/408P)

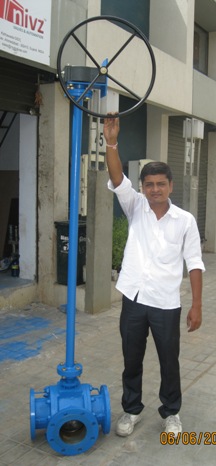

3 Way Ball Valve Gear Operated - Series F508G/608G

Three Way Ball Valve for Lube Oil Cooler/Heat Exchanger -  Series F508/608 Three Way Ball Valve for Lube Oil Filter -  Series F508/608

3 Way Ball Valve Dimensions

3 Way Ball Valve Dimensions - Three Way L Port, Full Bore, Ball Valve Dimensions - Class 150
Pressure Rating - Class 150 / PN6 / PN10 / PN16 / PN 25 (Model - Series F508)
Flange Drilling & Dimensions - As Per ANSI B 16.5, Class 150 (Other Standrad Drilling Available on Request)
Size (INCH) 1" 1-1/2" 2" 2-1/2" 3" 4" 5" 6" 8" 10" 12"
Size (DN) 25 40 50 65 80 100 125 150 200 250 300
F to F 165 215 245 263 284 336 400 450 600 730 880
Flange O.D. 108 127 152.4 177.8 190.5 228.6 254 279 343 406 483
Flange PCD 79.3 98.4 120.6 139.7 152.4 190.5 215.9 241.3 298.4 362 431.8
R.F. Dia. 50.8 73 92.1 104.7 127 157.2 185.6 215.9 269.9 323.8 381
No. of Hole 04 04 04 04 04 08 08 08 08 12 12
Hole Dia. 15.8 15.8 15.8 19 19 19 19 22.2 22.2 25.4 25.4
.
.
3 Way Ball Valve Dimensions - Three Way L Port, Full Bore, Ball Valve Dimensions - Class 300
Pressure Rating - Class 300 / PN40 / PN64 (Model - Series F608)
Flange Drilling & Dimensions - As Per ANSI B 16.5, Class 300 (Other Standrad Drilling Available on Request)
Size (INCH) 1" 1-1/2" 2" 2-1/2" 3" 4" 5" 6" 8" 10" 12"
Size (DN) 25 40 50 65 80 100 125 150 200 250 300
F to F 178 220 260 270 294 352 422 473 625 765 918
Flange O.D. 124 155.4 165.1 190.5 209.5 254 279.4 317.5 381 444.5 520.4
Flange PCD 88.9 114.3 127 149.3 168.1 200.1 234.9 269.7 330.2 387.3 450.8
R.F. Dia. 50.8 73 92.1 104.7 127 157.2 185.7 215.9 269.9 323.8 381.0
No. of Hole 04 04 08 08 08 08 08 12 12 16 16
Hole Dia. 19 22.2 19 22.2 22.2 22.2 22.2 22.2 25.4 28.6 31.8
Special Options of “TWIN” 3 Way Ball Valve
  • Fire Safe Design
  • Antistatic Device
  • Partial / Full Jacketed Ball Valve
  • Handle Locking Arrangement
  • Flush Bottom Design Ball Valve
  • Multiport Ball Valve (Three Way / Four Way)
  • Extended Handle
  • Extended Bonnet
  • Limit Switches
  • Pneumatic Rotary Actuator Operated Ball Valve
  • Single (Spring Return)/Double Acting Actuator
  • Electrical Actuator Operated Ball Valve
  • Tailor Made Ball Valve
Three Way Ball Valve Various Operation Option:

Twin Valves & Automation 3 Way Ball Valves mostly supplied with manual hand lever operated or quartrer gear (worm-gear type) unit operated, depend on valve size. Twin Valves & Automation also provide Ball Valves with Pneumatic or Electrical actuator operated for automation. We also manufacturing Pneumatic Actuator Operated 3 Way Ball Valve, Remote operated 3 Way Ball Valve, Auto 3 Way Ball Valve, Pneumatic Actuated 3 Way Ball Valve, 3 Way Diverter Ball Valve, 3 Way Fire Safe Design Auto Ball Valve, Gear Actuator Operated 3 Way Ball Valve, Pneumatic Operated 3 Way L Port Ball Valve, Pneumatic Actuated 3 Way T Port Ball Valve, Pneumatic Multiport 3 Way Ball VAlve. We recommend for Gear Operated 3 Way Ball from valve size from 4" x 300# & 6" x 150# Size. Extended Bonnet 3 Way Ball Valve, Cryogenic Ball Valve also available on request.

Accessories for 3 Way Ball Valves:

    Pneumatic Actuators (Quarter Turn):

Type - Double / Single Acting (Spring Return) Quarter Turn
Body - Extruded Aluminium, Hard Anodized (Stainless Steel Body also available on Request
Pinion - Steel
Piston wiht Rack - Aluminium
End Cover - Aluminium
Piston Seal - NBR
Piston Bearing - Polyacetal
Spring - Spring Steel Grade 3 (For Spring Return Actuator)
Strok Adjustment Screw - S.S. 304
Air Connection - 1/4" BSP Female (1/2" for above 2000Nm)
Torque Capacity Range - 5Nm To 3000 Nm
Suitalbe for up to 8 Bar Air Pressure
ISO 5211 Mounting Pad

    Gear Box (Gear Actuator):
Type - Worm Gear, Quarter Turn, + 10 Deg. Adustable
Body Housing - ASTM A 126 GR. B (Epoxy Coated)
Cover - ASTM A 126 GR. B (Epoxy Coated)
Worm Wheel - S.G. Iron
Worm - Alloy Steel
Input Shaft - Alloy Steel
Bearing Bush - Brass
Greese Nipple - Steel
Fastners - ASTM A 193 GR. B7 / A 194 GR. 2H
Grease - Lithon 2
Hand Wheel - C.S. Fabricated (Epoxy Coated)
Torque Capacity Range - 50Nm To 25000 Nm

    Manual Override Gear Box (Clutching-Declutching Type):
Application - In Case of Failure of Air/Electric to Operate Valve
Type - Worm Gear, Quarter Turn, + 10 Deg. Adustable
Body Housing - ASTM A 126 GR. B / Aluminium / Ductile Iron
Cover - ASTM A 126 GR. B / Aluminium / Ductile Iron
Worm Wheel - S.G. Iron
Worm - Alloy Steel
Input Shaft - Alloy Steel
Bearing Bush - Brass
Greese Nipple - Steel
Fastners - ASTM A 193 GR. B7 / A 194 GR. 2H
Grease - Lithon 2
Hand Wheel - C.S. Fabricated (Epoxy Coated)
Torque Capacity Range - 50Nm To 5000 Nm

    AFR - Air Filter Regulator:
Body Material - Aluminium Die Cast
Connection Size - 1/4"
Filter Element Size - 5, 25, 50 Micron
Filter Element Material - Polycarbonate
Range - 0 to 17.5 Kg./Cm2
Maximum Operating Temperature - 80 Deg. C.
Drain - Manual
Mounting - Back Side
Mounting - Back Side
Outlet - Adjustable Type

    Limit Switches (Weather / Explosion Proof):
Housing - Aluminium Die Cast Powder Coated
Cable Entry - 1/2" / 3/4" NPT
Fasteners - Strainlesss Steel
Temperature - (-) 20 Deg. C, to (+) 80 Deg. C.
Swithches - Micro OR Cylindrical Inductive Proximity Sensor
Shatterproof Polycarbonate Dom for On/Off Indication
Bracket - C.S. Powder Coated (S.S. available on request)

    Namur Type Solenoid Valve:
Type - 5 x 2 Way (for Double Acting)/3 x 2 (for Single Acting)
Body - Aluminium Anodized (Brass/S.S. on request)
End Connection Size - 1/4" BSP
Air Supply - Up to 8 Kg./Cm2
Coil Voltage - 220 V. / 110 V. / 24 V. AC / DC
Enclosure - Weather Proof / Flame Proof / Explosion Proof
Seal - NBR
Life - 60 Milion Cycle
Manual Override Provided
Temperature - (-) 20 Deg. C, to (+) 70 Deg. C.
Large Exchause for Fast operation of Valve
Other Accesories : Silencer, Air Lock Relay, Tubing & Fittings (PU/Brass/Copper/SS 304-316)
Material of Construction for
Series: S108LT/S208LT – 3 Way Ball Valve (Screwed End)
Series: F308LT/F408LT – 3 Way Ball Valve (Flanged End)
Body / End Piece (Side Piece)
Cast Carbon Steel to ASTM A 216 GR. WCB
Stainless Steel to ASTM A 351 GR. CF 8 / 8M / 3 / 3M
ASTM A 351 GR. CN 7M (Alloy 20)
Ball
Stainless Steel to ASTM A 351 GR. CF 8 / 8M / 3 / 3M
Hast Alloy B / C
ASTM A 351 GR. CN 7M (Alloy 20)
Ball Seat / Gland Seal / Stem Seal
P.T.F.E. – Virgin
P.T.F.E. – Glass Filled
P.T.F.E. – Carbon Filled
Grafoil
Stem
AISI 410 (S.S. 410 – 13% Cr. Steel)
AISI 304 (S.S. 304)
AISI 316 (S.S. 316)
AISI 304L (S.S. 304L)
AISI 316L (S.S. 316L)
Hast Alloy B / C
Alloy 20
Please specify below details at the time of Enquiries / Orders:
  • Types of Valve Port (L or T)
  • Pressure Rating Class
  • Valve Size / Pipe Line Size
  • Type of End Connection (Flanged / Screwed / Welded End)
  • Drilling Standard, If Flanged End
  • Material of Construction (Body Material)
  • Trims (Internal) Parts Material
  • Flow Medium (Service/Application)
  • Design Pressure
  • Operating (Working) Pressure
  • Design Temperature
  • Operating (Working) Temperature
  • Type of Operation Manual / Pneumatic / Electrical Actuator
Wide Range of Industrial Ball Valve Mfg. by “TWIN”
  • Cast Iron Ball Valve Manufacturers
  • Cast Carbon Steel Ball Valve Manufacturers
  • Stainless Steel Ball Valve Manufacturers
  • Forged Steel Ball Valve Manufacturers
  • Single Piece Design Ball Valve Manufacturers
  • Two Piece Design Ball Valve Manufacturers
  • Three Piece Design Ball Valve Manufacturers
  • Multiport Ball Valve Manufacturers
  • Mixing & Diverting Type Ball Valve Manufacturers
  • High Pressure Ball Valve Manufacturers
  • Two Way Ball Valve Manufacturers
  • Three Way Ball Valve Manufacturers
  • Four Way Ball Valve Manufacturers
  • Fire Safe Ball Valve Manufacturers
  • High Performance Ball Valve Manufacturers
  • Alloy 20 Ball Valve Manufacturers
  • SS 316L Ball Valve Manufacturers
  • Jacketed Ball Valve Manufacturers
  • Half Jacketed Ball Valve Manufacturers
  • Full Jacketed Ball Valve Manufacturers
  • Sulphur Jacketed Ball Valve Manufacturers
  • Flush Bottom Ball Valve Manufacturers
  • Gear operated Ball Valve Manufacturers
  • Pneumatic Operated Ball Valve Manufacturers
  • Electrical Operated Ball Valve Manufacturers
  • I.C. Ball Valve (Investment Casting) Manufacturers
  • Zero Leakage Ball Valve Manufacturers
  • High Performance Ball Valve Manufacturers
  • Extended Bonnet Ball Valve Manufacturers
  • Wafer Type Ball Valve Manufacturers
  • High Pressure Ball Valve Manufacturers
  • A 352 LCB/LCC Ball Valve Manufacturers
  • PTFE Lined Ball Valve Manufacturers
  • Fire Safe Design Ball Valve Manufacturers

Recent Executed 3 Way Ball Valve Purchase Order

Date: 06/06/2012 - Three Way Ball Valve supply for Thermal Power Plant, Lube Oil Cooler/Heat Exchanger Application. 3 Way Ball Valve Specification - Body - ASTM A 216 GR. WCB, Trims - S.S. 316, Operation - Gear Operated. 3 Way Ball Valve is going to installed in Thermal Power Plant which earlier supplied by M/s. ThyssenKrupp.

Industrial 3 Way Ball Valve Manufacturers and Expoorters India

bottom Logo Home | Products | Contact
All Content © Copyright - TWIN Valves & Automation - INDIA.
Manufacturer & Exporter of Three Way Ball Valves - www.threewayballvalve.com
