| Three Way Ball Valve Screwed End |
| (3 Way Ball Valve Threaded End) |
| Series: S108LT/S208LT 3 Way Ball Valve Screwed End |
 |
TWIN manufacturing & exporting of 3 Way Screwed End Ball Valve in different types of port to suit various application. Mostly 3 Way Ball Valves are manufactured in L Port & T Port. L Port 3 Way Ball Valve mostly use in Duplex Filter, Duplex Type Basket Strainer, Duplex Heat Exchanger application to changeover from standby to working or working to standby. By the use of L Port 3 Way Ball Valve client can easily clean the filter without getting of plant shut-down. T Port 3 way Ball Valve mostly used to divert flow from state line and pump by-pass line. Three Ball Valve also known by the name of diverter valve.
TWIN 3 Way Ball Valves also available with engineering option like Manual Hand Lever Operated, Gear Actuator Operated, Electro-Pneumatic Actuator Operated, Remote Operated, Rotary Actuator Operated, Quarter-Turn Actuator Operated, Single Acting Actuator Operated, Double Acting Actuator Operated, Electrical Actuator Operated etc.
Our Three Way Ball Valve Screwed/Socket Weld size range is start from ½ (DN15) to 2 (DN50) in Pressure Rating PN10/PN16/PN25/PN40/150#/300#. For Screwed end 3 Way Ball Valve various type of threaded option also available i.e. BSPP/BSPT/NPT etc. |
| |

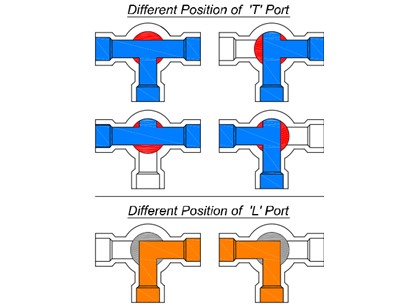

3 Way Ball Valve Different Position
(Screwed End Connection) |
| Application for |
Series: S108LT/S208LT 3 Way Ball (Screwed End)
Series: F308LT/F408LT 3 Way Ball (Flanged End) |
| Mixing & Diverting Application,
Duplex Type Basket Strainer,
Duplex Type Heat Exchanger,
Duplex Filter,
Pump By-Pass Line,
Lube Oil Cooler Heater,
Lube Oil Cooler Filter,
Pump By-Pass Line,
Re-Circulating Line, etc. |
|
|
